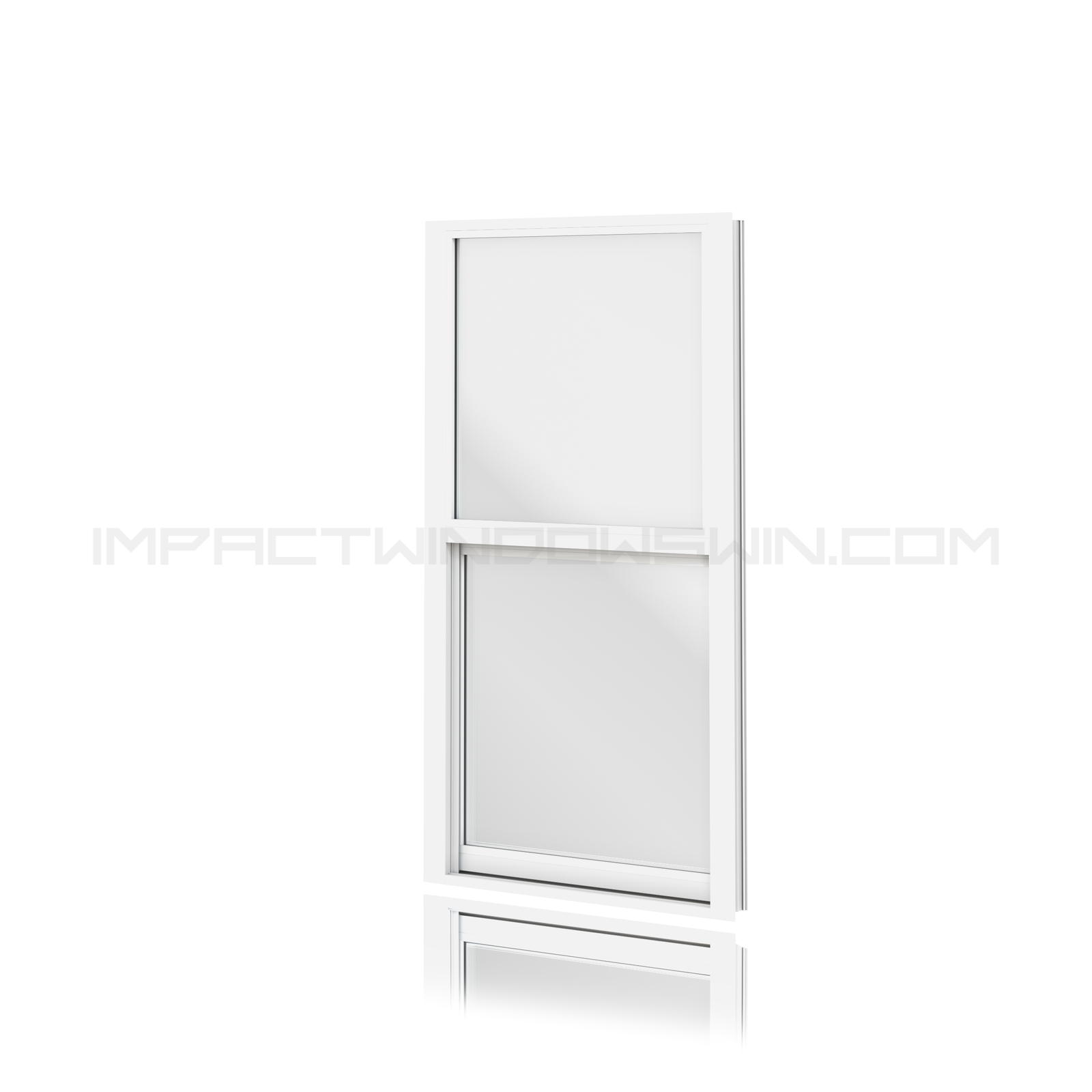

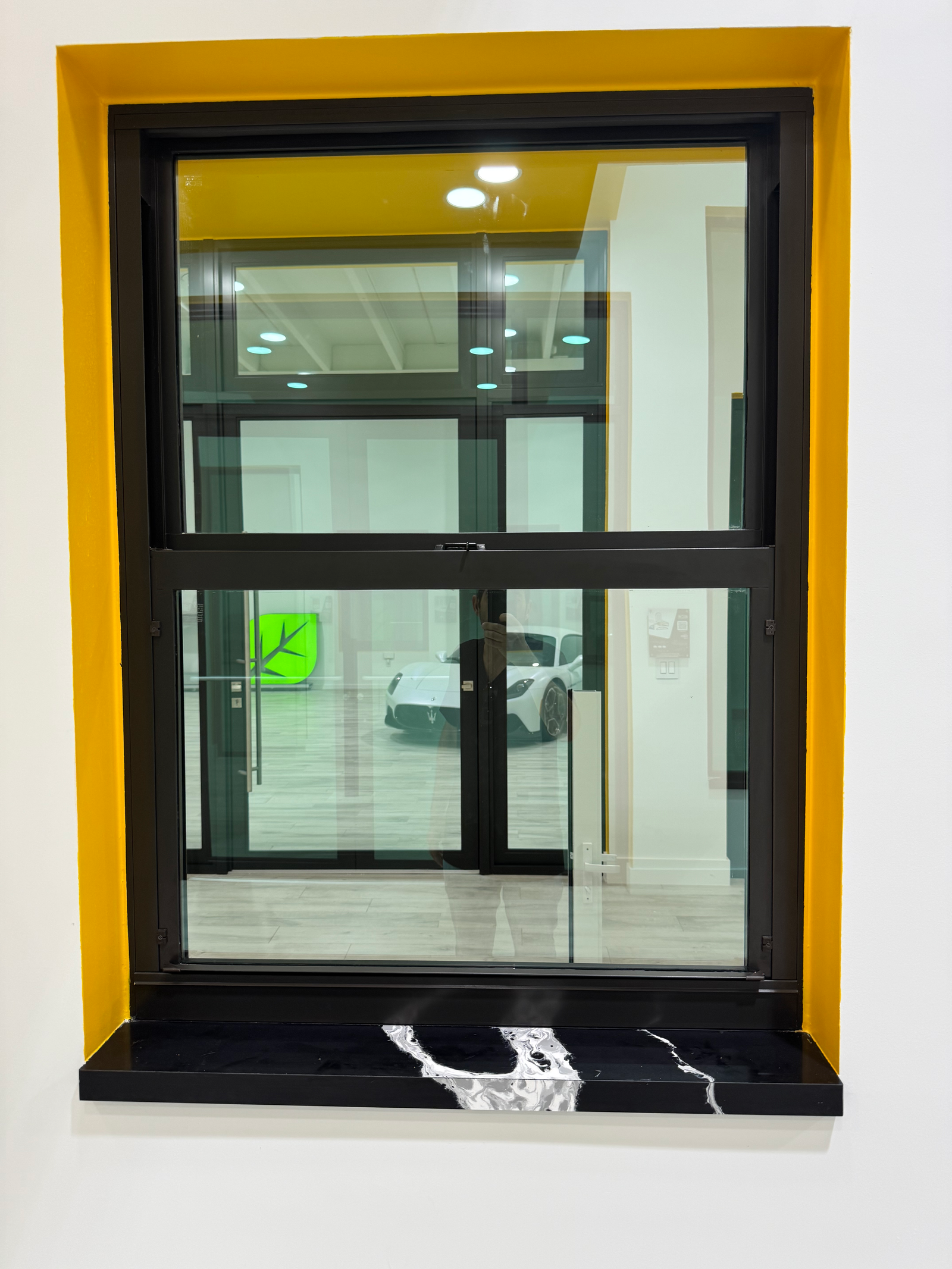

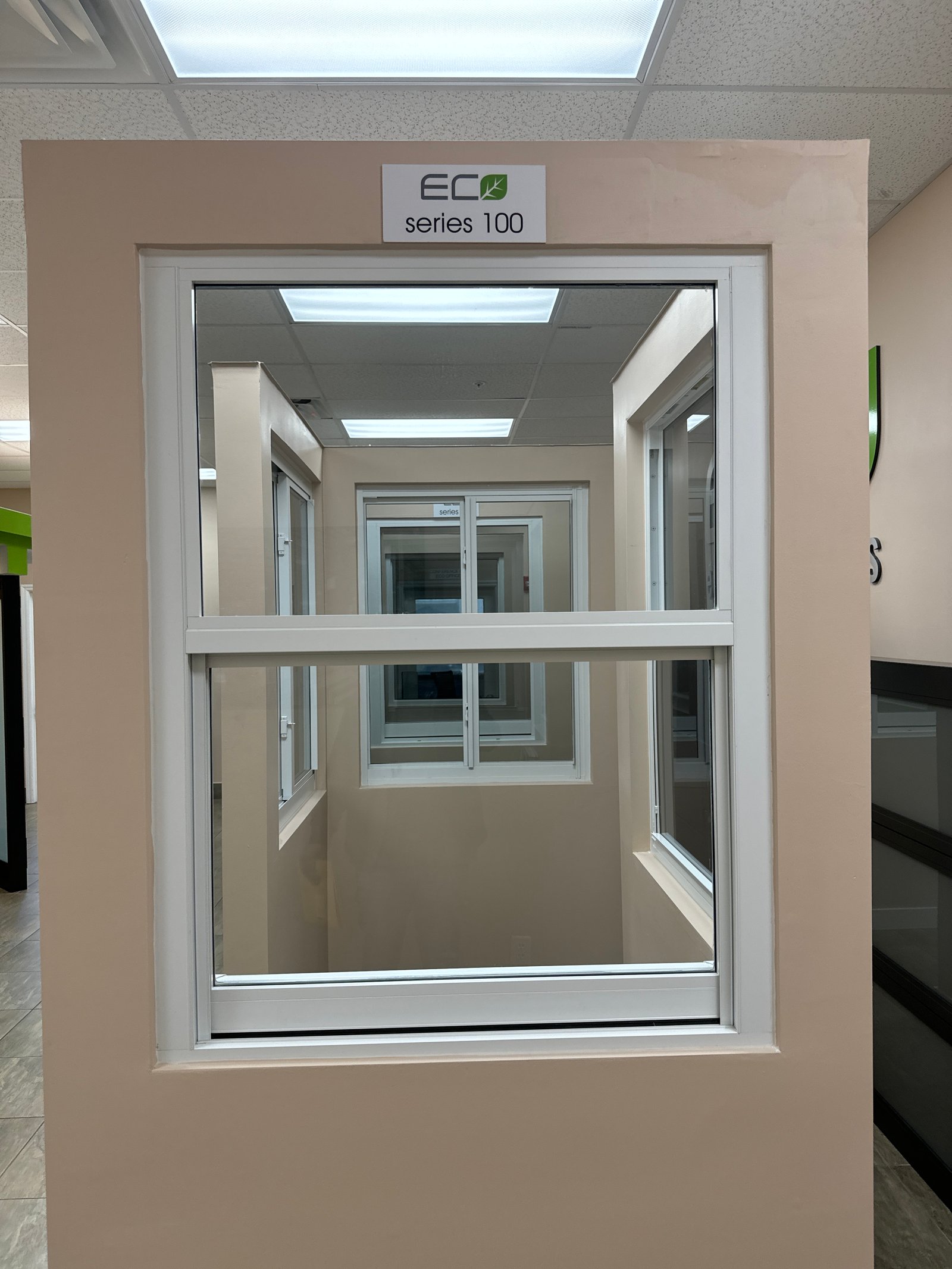

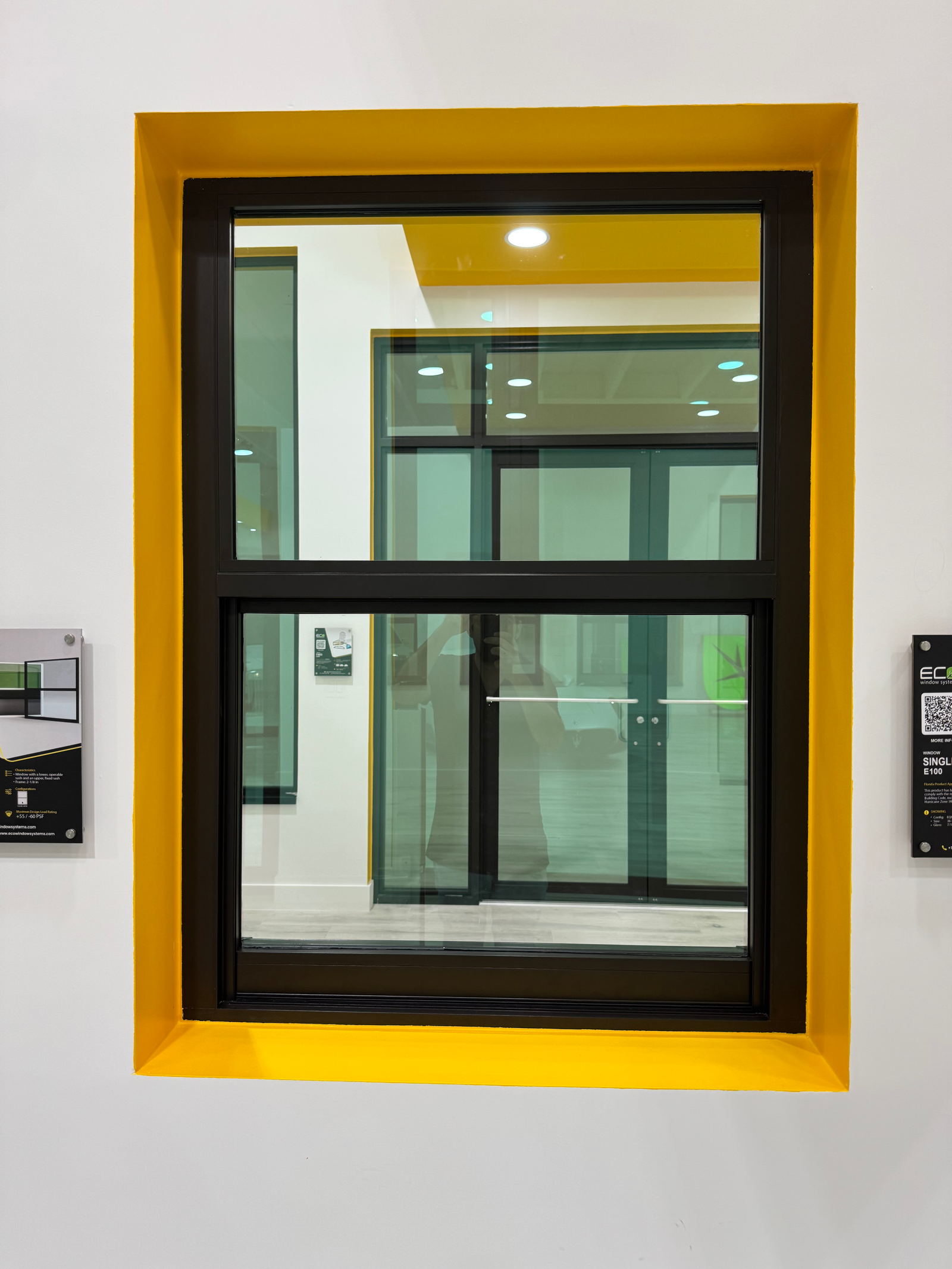

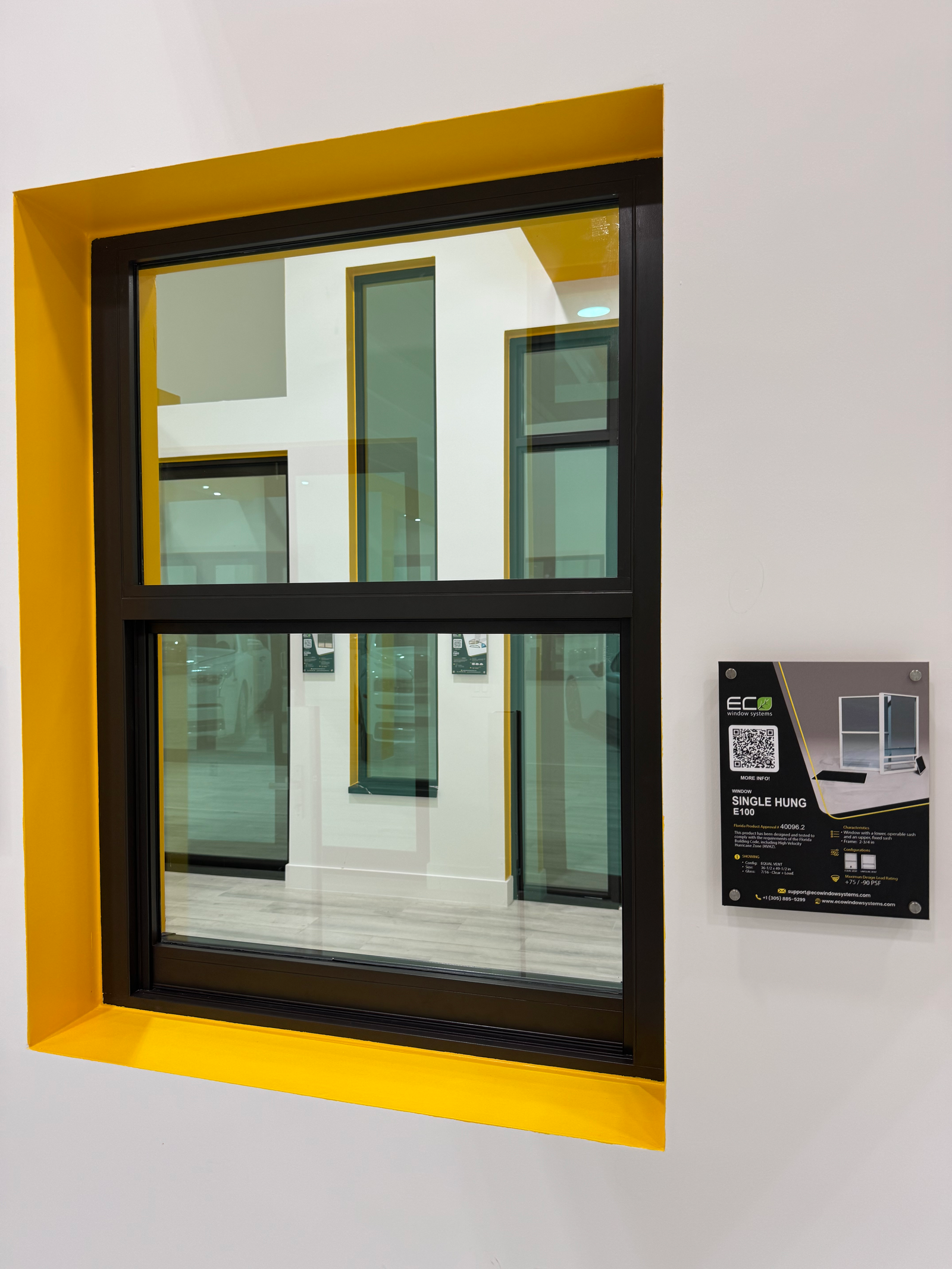

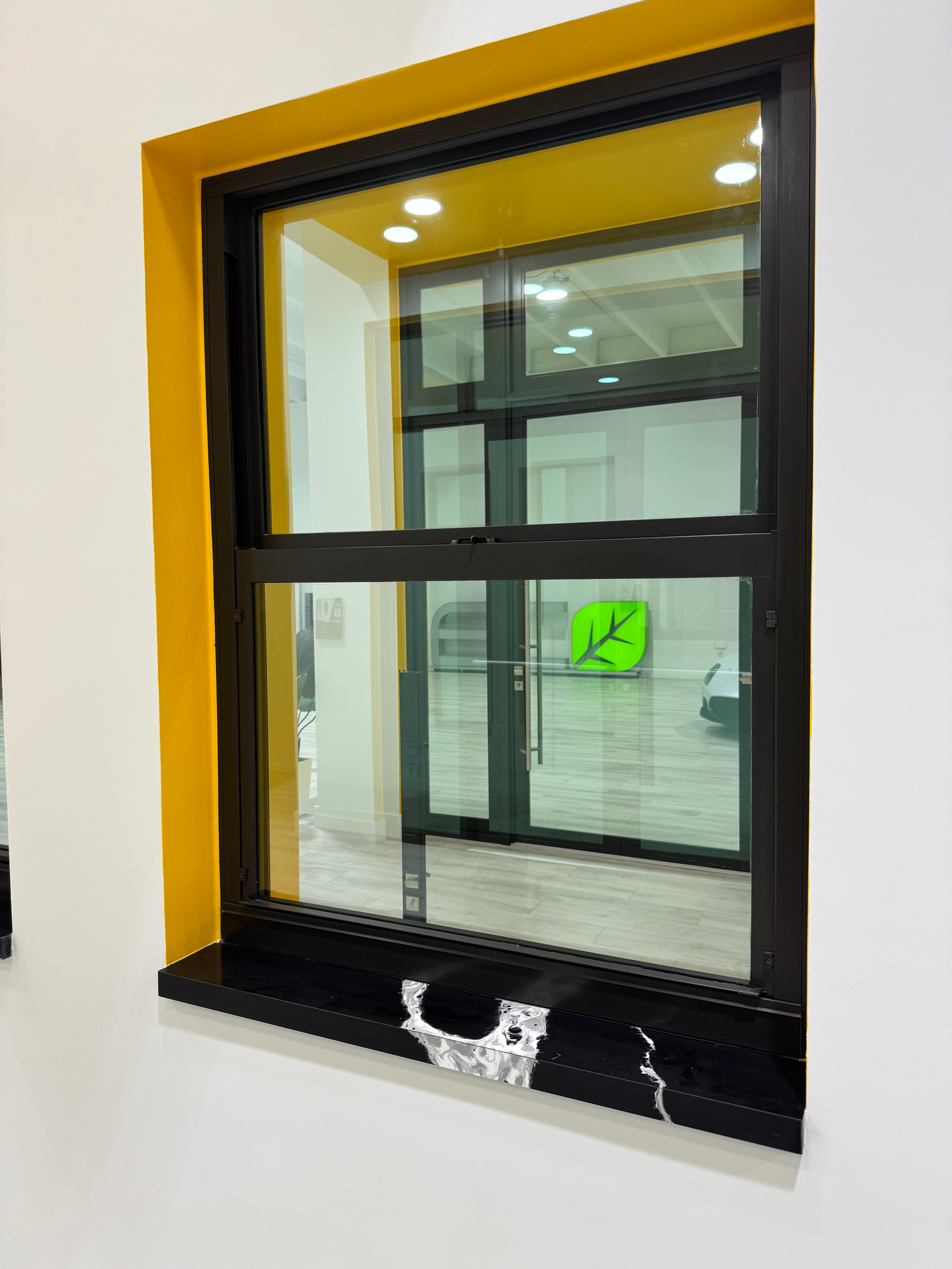

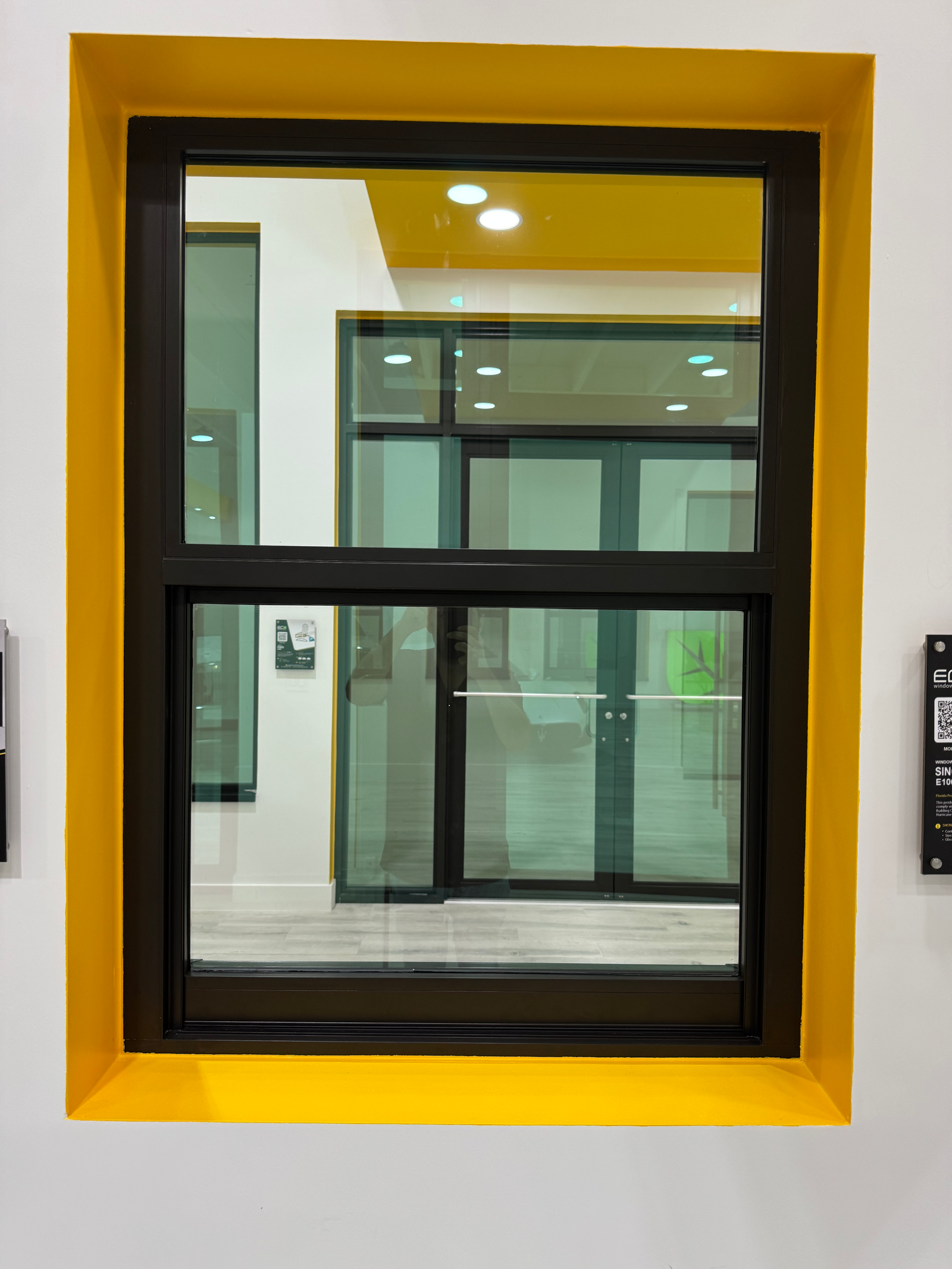

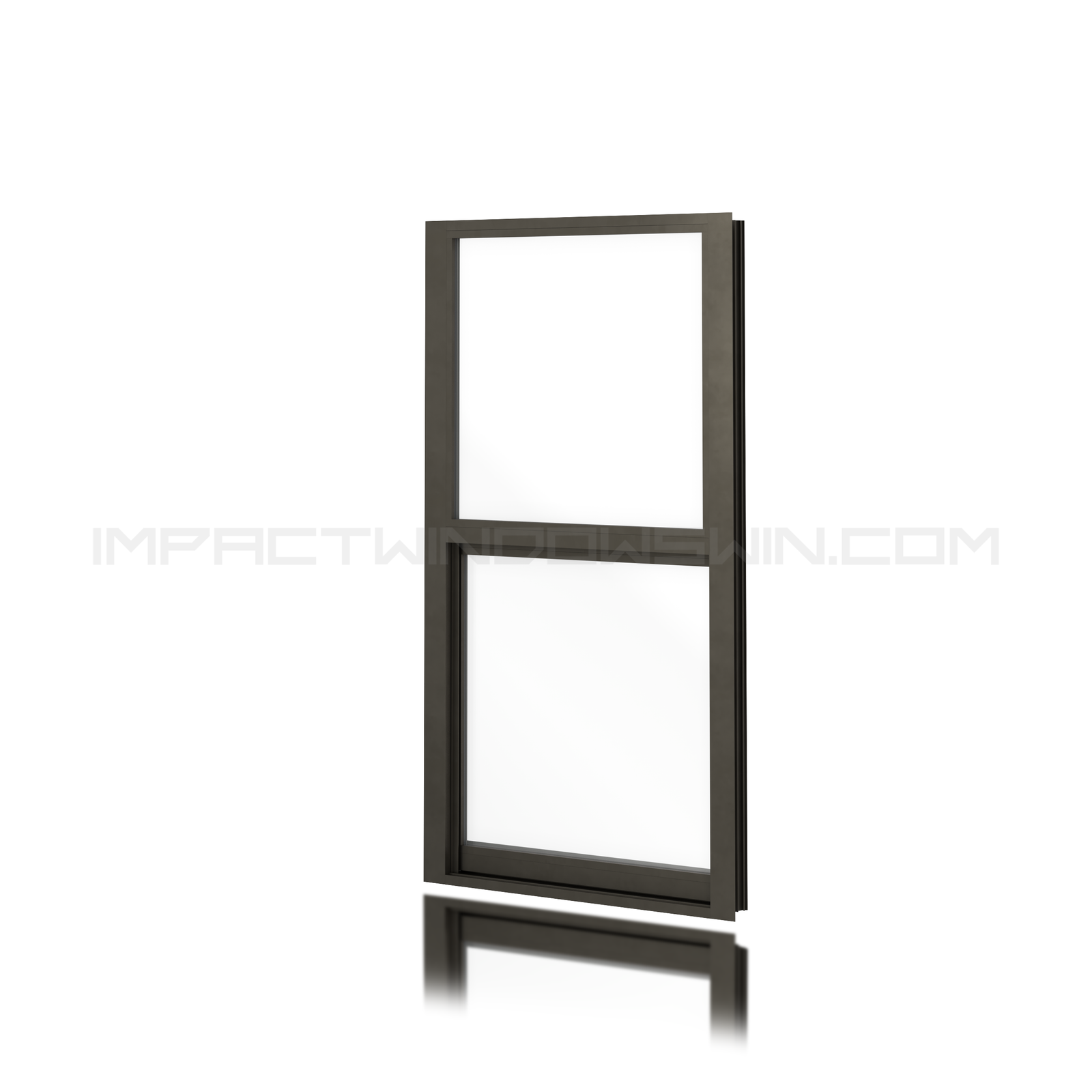

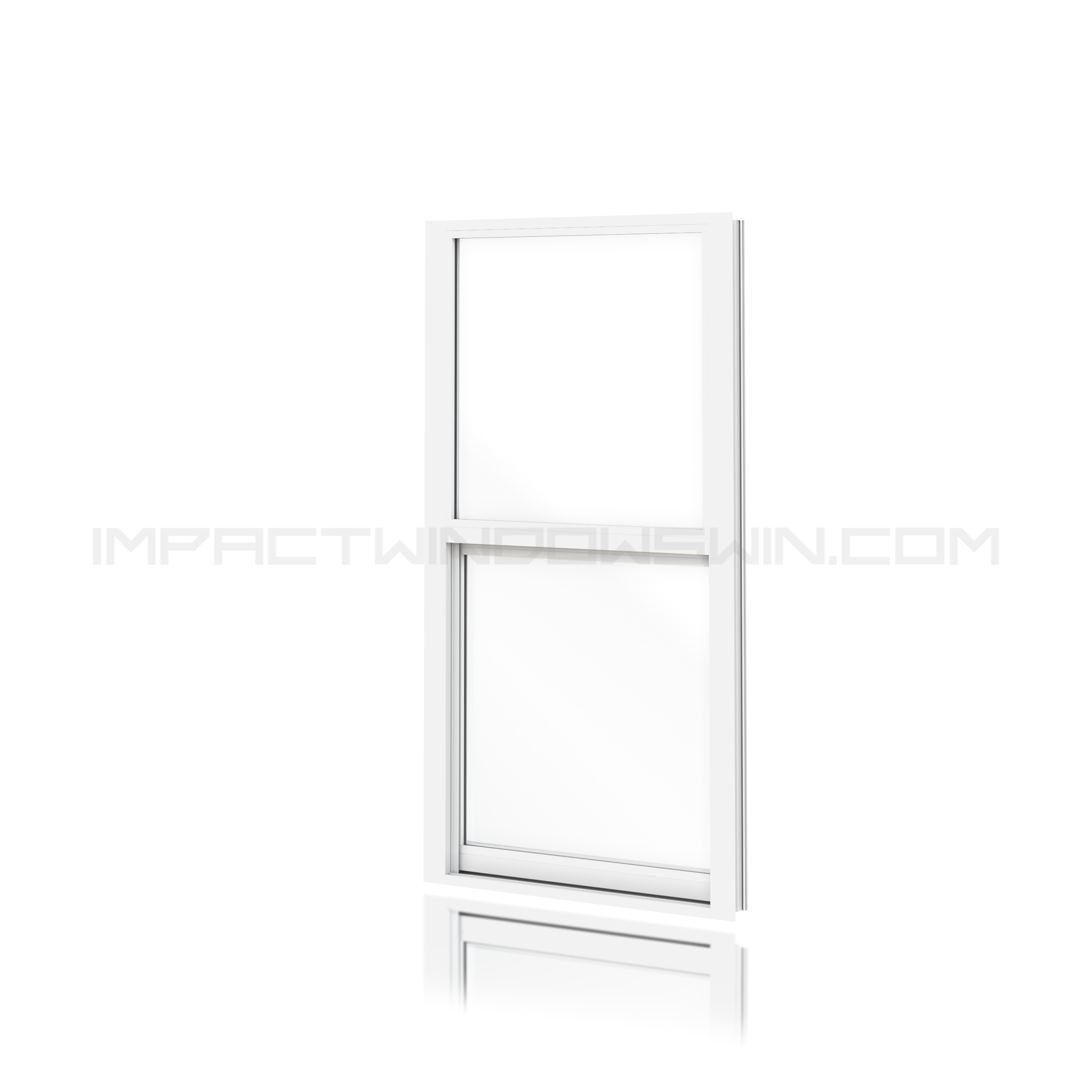

ECO 100 Single Hung Impact Window

Description

Overview:
The ECO 100 Single Hung Impact Window combines classic vertical styling with advanced hurricane protection, making it ideal for residential and commercial applications. Its heavy-duty aluminum frame and laminated impact-resistant glass ensure durability and safety in high-velocity hurricane zones.

Features:

• Frame: Heavy-gauge aluminum T6 alloy profile
• Operation: Fixed top sash with movable bottom sash
• Glass: 5/16″ HS/HS laminated impact glass (Clear, Gray, Bronze, Obscure options)
• Performance (PSF): +60 / -80
• Design Pressure: Large Missile Impact
• Hardware: Ultra-lift balances for smooth operation
• Weather Sealing: Double weather-stripping for superior air and water resistance
• Locking Mechanism: Sweep locks for enhanced security
• Frame Depth: 2 3/4″ maximum

Specifications:

• Series: ECO 100 Single Hung
• Maximum Size: 53 1/8″ x 76″ (Large Missile Impact)
• Glass Orientation: Equal leg adapter available
• Muntin Patterns: 1″ Flat-Flat, 1″ Ogee-Flat, Colonial, Brittany 6, Brittany 9
• Optional Features: Laminated insulating glass, egress sash locks, unequal lite (Oriel) configuration

Certifications:

• Florida Product Approval: FL#40096-R1
• Miami-Dade NOA: NOA #18-1220.05

Durability & Security:
Designed to withstand extreme weather conditions, the ECO 100 offers long-lasting performance and reliable protection. Its laminated impact-resistant glass and reinforced frame provide enhanced security and peace of mind.
