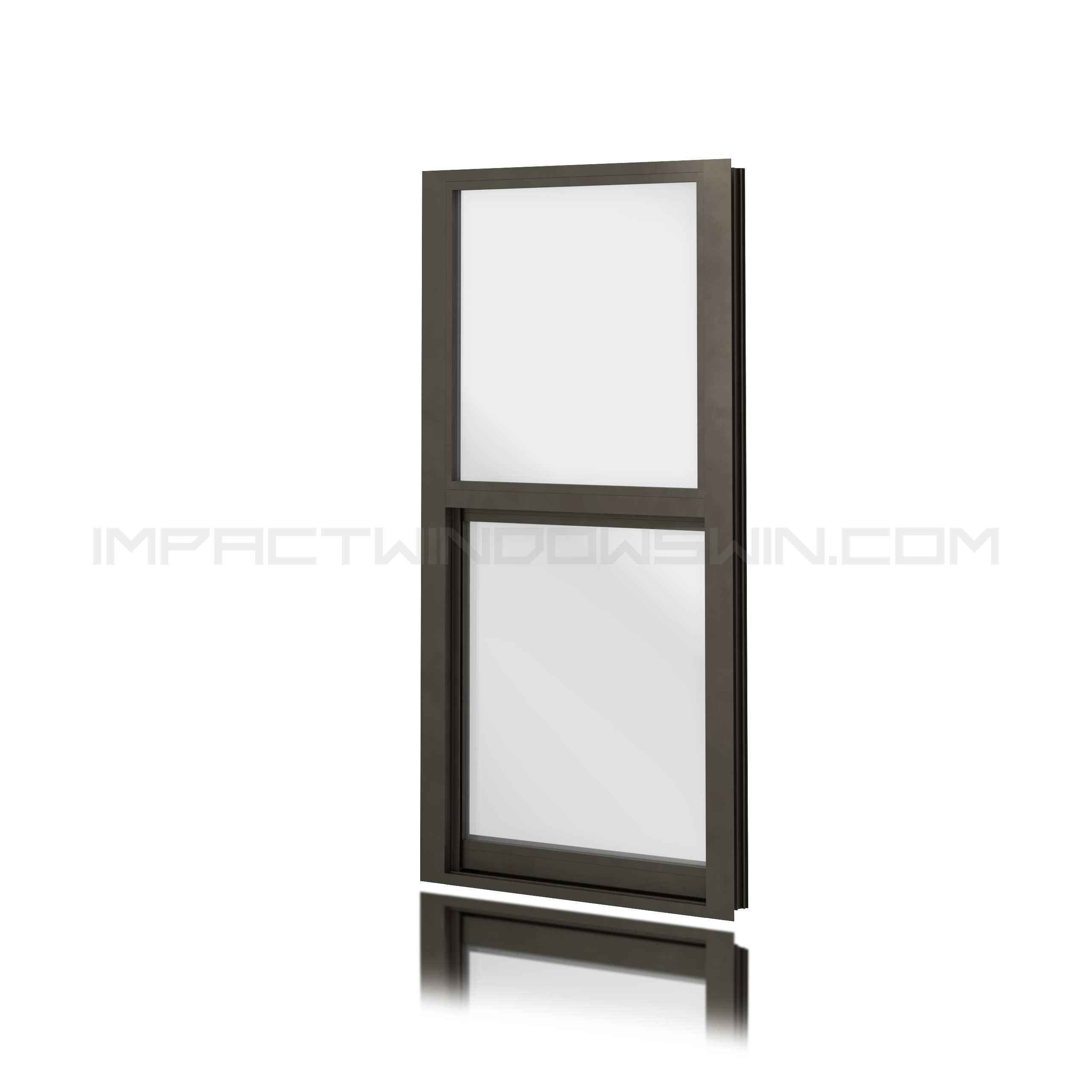

Impact Resistant Single Hung Window

• Max. Dimensions: 53-1/8” x 96”

• Meets Florida Building Code for High Velocity Hurricane Zone. Large and Small missile rated

• Sturdy Construction allows for very high wind loads up to 140 PSF

• Glazing applied with high strength silicone for elevated resistance to impact and cyclic loads

• 2-7/8” deep frame. Glazing Capabilities: Heat strengthened laminated (5/16” & 7/16”) and Insulated glass up to 13/16” thick. Enhanced thermal performance with low E coating available

• Hybrid “Ultralift” ® balances for ease of operation come standard

• Powder Coating aluminum finish for superb quality and environmentally friendly operation. Meets AAMA 2604 exigencies (5 year warranty) AAMA 2605 is also available (10 year warranty)

​Florida Product Approval

FL #20352.1 LMI – FL #20352.2 SMI

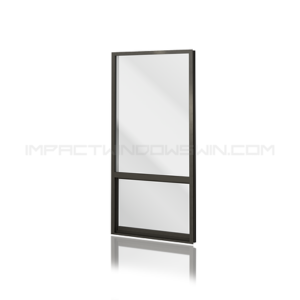

Impact Resistant Single Hung Window Wall System

• Max Dimensions of each module 48” x 120”

• Modular Design and allows for multiple units connected side by side

• Meets Florida Building Code for High Velocity Hurricane Zone. Large and small missile rated

• Sturdy Construction allows for very high wind loads up to 120 PSF

• 6” deep system. Glazing Capabilities: Heat Strengthened Laminated (7/16” & 9/16”) and Insulated glass up to 13/16” thick. Enhanced thermal performance with low E coating available.

• Suitable for high rise applications. Accommodates structure movement, expansion and contractions

• Hybrid “Ultralift” ® balances for ease of operation come standard

• Powder Coating aluminum finish for superb quality and environmentally friendly operation. Meets AAMA 2604 exigencies (5 year warranty) AAMA 2605 is also available (10 year warranty)

​​Florida Product Approval

FL #41845.1 LMI – FL #41845.2 SMI – FL #32415.1 LMI – FL #32415.2 SMI

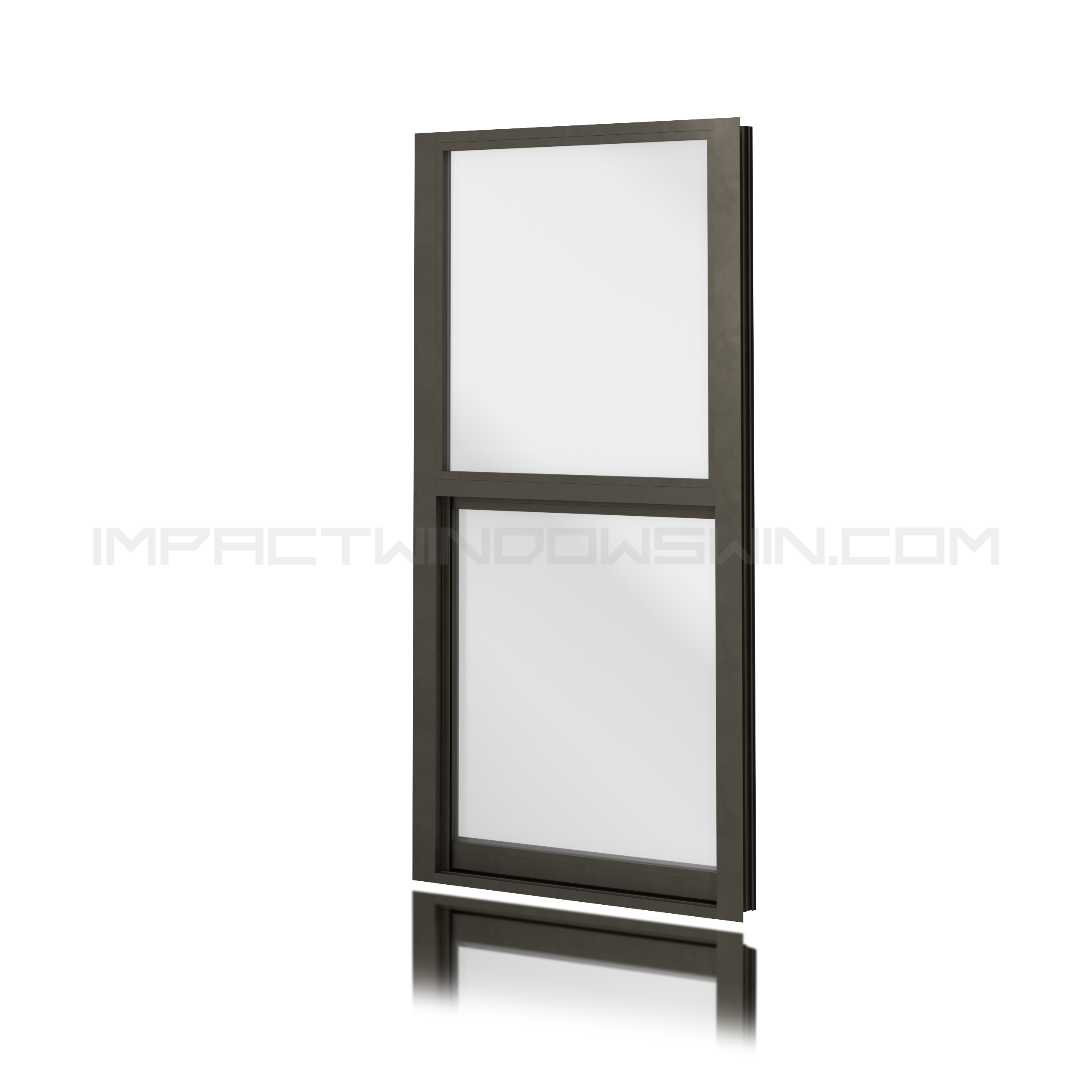

Impact Resistant Single Hung Window

• Meets HVHZ. LMI Rated

• DP= +65/-80 PSF

• Sizes up to 53” x 76”

• Slim structure to maximize glass view and day light opening

• Extrusions are 2-3/16” deep to have the minimal impact on interior finish during retrofit

• Machine glazed with silicone GE 2000/DS795

• Laminated Heat Strengthened Glass with 0.09 thick PVB as interlayer

• Silicone glazing gasket and stainless steel screws

• Clear, tinted, or reflective glass. Low-e glass for enhanced Solar Heat Gain Coefficient while allowing maximal transparency and visual light transmittance

• Powder coat finish. Standard and custom colors. Meeting AAMA 2604 as standard finish (5 years warranty) with possibility to upgrade to AAMA 2605 (10 years warranty)

• Aluminum 6063T6 structure

• Colonials for design freedom

​​Florida Product Approval

FL #41887.1 LMI

Impact Resistant Single Hung Window

Impact Resistant Single Hung Window
