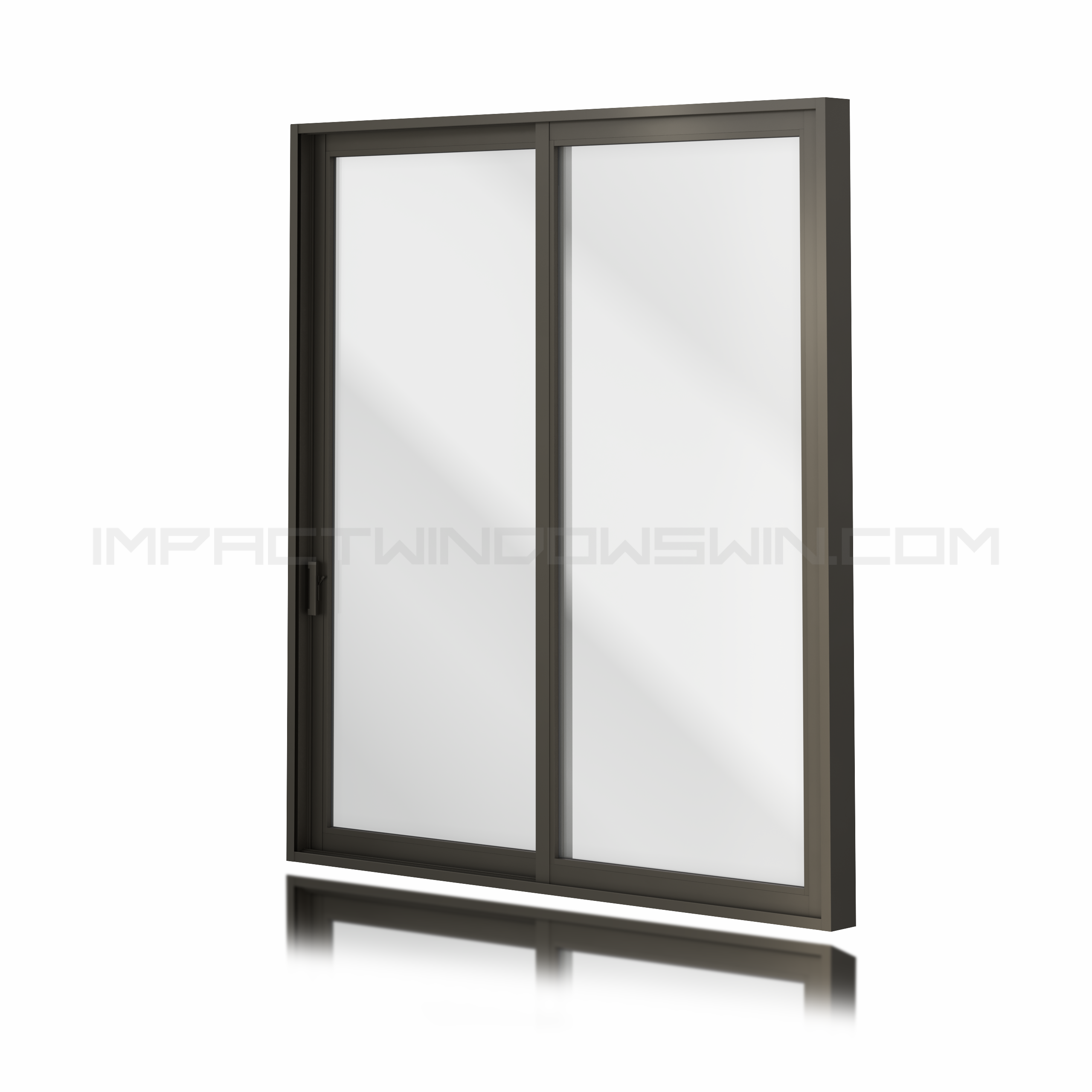

Impact Resistant Sliding Glass Door 2 Tracks / 4 Panels

• • Meets Florida Building Code for High Velocity Hurricane Zone. Large and Small missile rated
  • Sturdy design capable of design pressures up to +120/-140 PSF. designed for high rise buildings
  • Max. Dimensions per panel 48″ x 144″ and 72″ x 96″
  • Jambs unanchored up to 108″ high
  • Pocket configurations available
  • Rain screen design with sill 2-5/8″ high. No sill raiser required up to +120PSF
  • Configurations: XO, OX, OXO, XOX, OXXO
  • No anchors apparent. Cover caps at jambs, sill, and head
  • Glazing capabilities 9/16″ laminated and 1-3/16″ insulated laminated. Enhanced thermal performance with low E coating available
  • Glazing applied with high strength silicone for elevated resistance to impact and cyclic loads
  • Powder Coating aluminum finish for superb quality and environmentally friendly operation. Meets AAMA 2604 exigencies (5 year warranty) AAMA 2605 is also available (10 year warranty)

Impact Resistant Multitrack Sliding Glass Door, 3 Tracks / 6 Panels

• Meets Florida Building Code for High Velocity Hurricane Zone.
  Large and Small missile rated

• Sturdy design capable of design pressures up to +80/-100 PSF.
  Designed for high rise buildings

• Max. Dimensions per panel 60” x 120”

• Jambs unanchored

• Pocket configurations available

• Screen inside as option

• Multiple configurations

• Glazing capabilities 9/16” laminated and 1-3/16” insulated laminated. Enhanced thermal performance with low E coating available

• Glazing applied with high strength silicone for elevated resistance to impact and cyclic loads

• Powder Coating aluminum finish for superb quality and environmentally friendly operation. Meets AAMA 2604 exigencies (5 year warranty) AAMA 2605 is also available (10 year warranty)

​Florida Product Approval

FL #25959.1 LMI – FL #25959.2 SMI

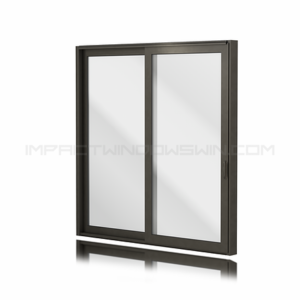

Impact Resistant Sliding Glass Door 2 Tracks / 4 Panels

• Meets Florida Building Code for High Velocity Hurricane Zone.
  Large and Small missile rated

• Slim and modern design, ideal for residential and mid rise commercial projects. Interlock section 1-3/8” wide

• Design Pressures +60/80 PSF. Max. panel size 48” x 108”

• Zamak roller housing with stainless steel ball bearing and PMO wheels

• Glazing capabilities 7/16” laminated. Enhanced thermal performance with low E coating available

• Easy installation. Unanchored jambs. 5” deep frame

• Screen runs outside

• Powder Coating aluminum finish for superb quality and environmentally friendly operation. Meets AAMA 2604 exigencies (5 year warranty) AAMA 2605 is also available (10 year warranty)

​Florida Product Approval

FL #38057.1 LMI – FL #38057.2 SMI

Impact Resistant Sliding Glass Door
